Overview

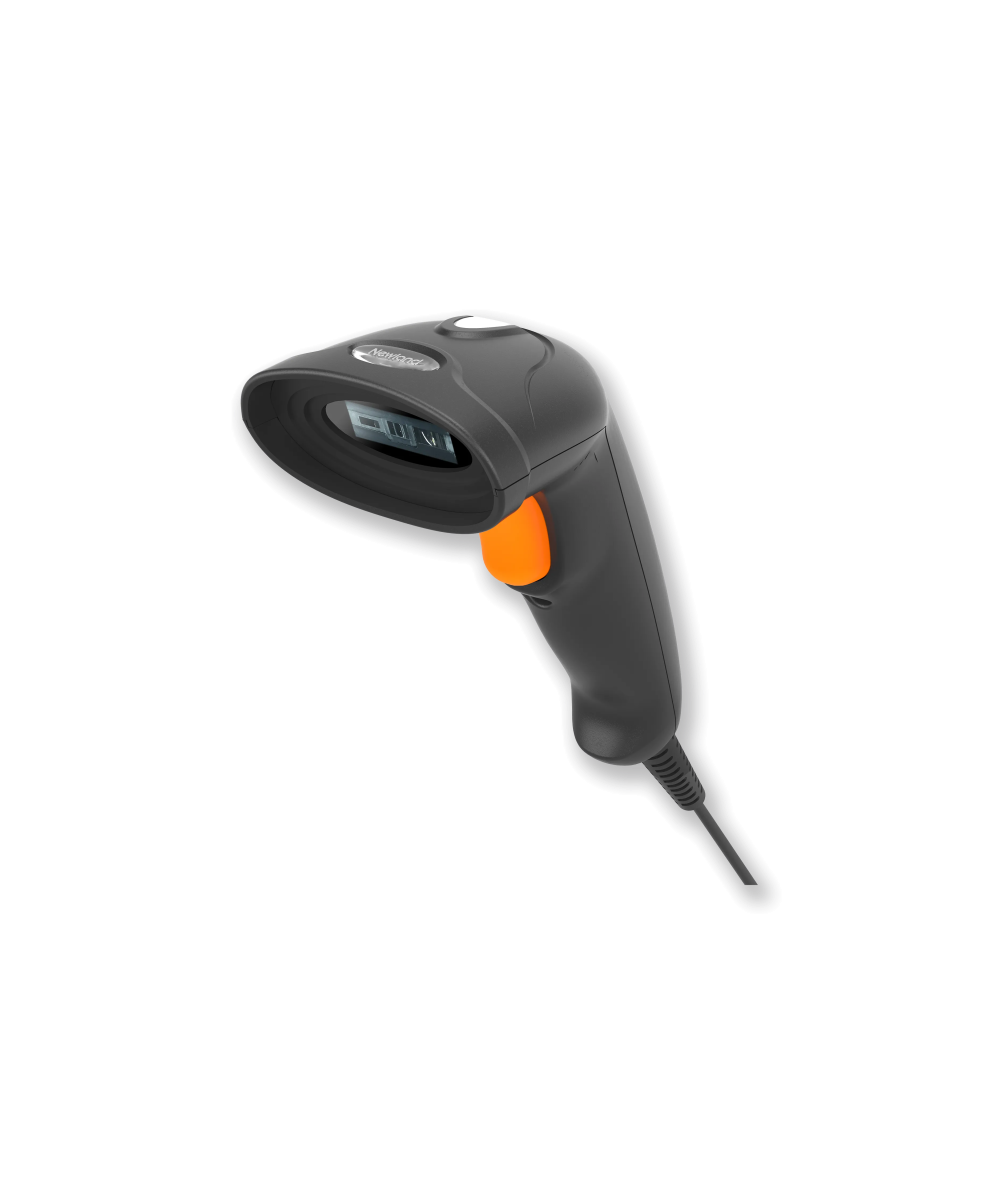

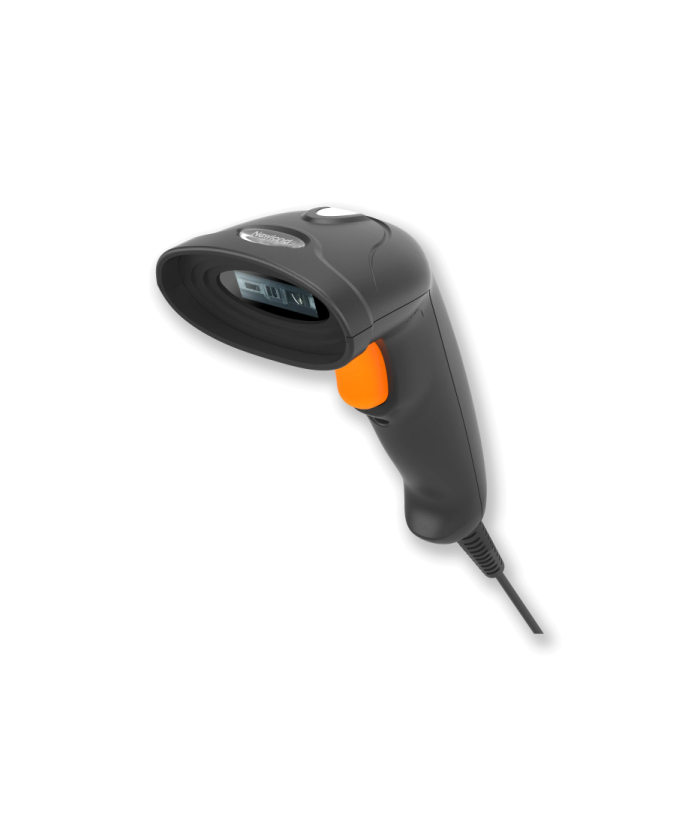

Designed for everyday barcode capture, the Newland HR12 Anchoa combines Newland’s proven
1D decoding chip with a solid-state CCD scan engine to deliver quick, dependable reads on
standard linear symbologies. At the checkout, in a stock room, or at a packing bench, operators benefit from a
lightweight ~130 g form factor (with cable) that reduces fatigue during all-day shifts.
The HR12 supports multiple scan modes —Trigger, Auto-sense (Sense), Continuous, and Command—so you
can tailor behaviour to your workflow. Typical performance reaches up to 300 scans per second ,
with practical depth-of-field of 50–655 mm for EAN-13 (13 mil) and
55–165 mm for Code 39 (5 mil) . Bright red LED (610–640 nm) illumination makes
aiming intuitive, even on cluttered packaging or shiny surfaces.
With exceptionally low ~55 mA operating current, the HR12 is an energy-efficient choice for
eco-conscious deployments and USB-powered setups. It connects via a 2 m USB cable and presents as
HID keyboard or Virtual COM (CDC) for plug-and-play compatibility with most POS
and WMS applications. Rated IP41 , it’s ready for daily duty in retail and office environments.
Key Features
Fast 1D capture: Up to 300 scans/sec for quick checkouts and counts.
Proven optics: Solid-state CCD engine with red LED (610–640 nm) illumination.
Practical working range: EAN-13 50–655 mm; Code 39 (5 mil) 55–165 mm.
Low power design: ~ 55 mA operating current for energy-efficient shifts.
Flexible modes: Trigger, Sense (auto), Continuous, and Command.
Lightweight & ergonomic: ~130 g with cable; compact 163 × 68.4 × 58.5 mm .
Simple connectivity: USB (2 m), HID keyboard or Virtual COM .
IP41 rating: Everyday protection for retail and office environments.
Ideal Applications
Retail POS & Price Checks
Inventory Counts
Receiving & Put-away
Shipping/Receiving Verification
Office & Mailrooms
Libraries & Labs
Ticketing Desks
Technical Specifications
Model
Newland HR12 Anchoa
Scanner Type
1D handheld with CCD engine
Decoder
Newland 1D decoding chip
Scan Rate
Up to 300 scans/second (typical)
Illumination
Red LED, 610–640 nm
Depth of Field
EAN-13 (13 mil): 50–655 mm; Code 39 (5 mil): 55–165 mm
Interfaces
USB HID Keyboard / Virtual COM (CDC)
Cable
2 m USB
Power
~55 mA operating current (typical)
Dimensions
163 × 68.4 × 58.5 mm (approx.)
Weight
~130 g (with cable)
Ingress Protection
IP41
Use Environments
Retail, storerooms, service counters, offices
What’s in the Box
HR12 Anchoa handheld scanner
2 m USB cable
Quick start / configuration guide
Enquire / Get a Quote
Need help mapping function keys or prefixes/suffixes? We can pre-configure data formats for your POS/WMS.
Why Choose HR12 Anchoa
For budget-friendly, everyday 1D scanning, the HR12 delivers the essentials: fast reads, low power draw,
simple USB integration, and a lightweight build that’s comfortable for constant use. It’s an easy win for POS lanes,
stock rooms, and back-office stations that need reliable linear barcode capture without complexity.
